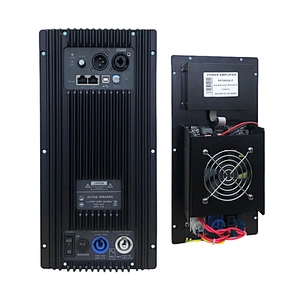

H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)
H408Column+PH-315(PFC-5002) System(2+2)

H408Column+PH-315(PFC-5002) System(2+2)

Model NO.
S20210001
Minimum order quantity
1 set

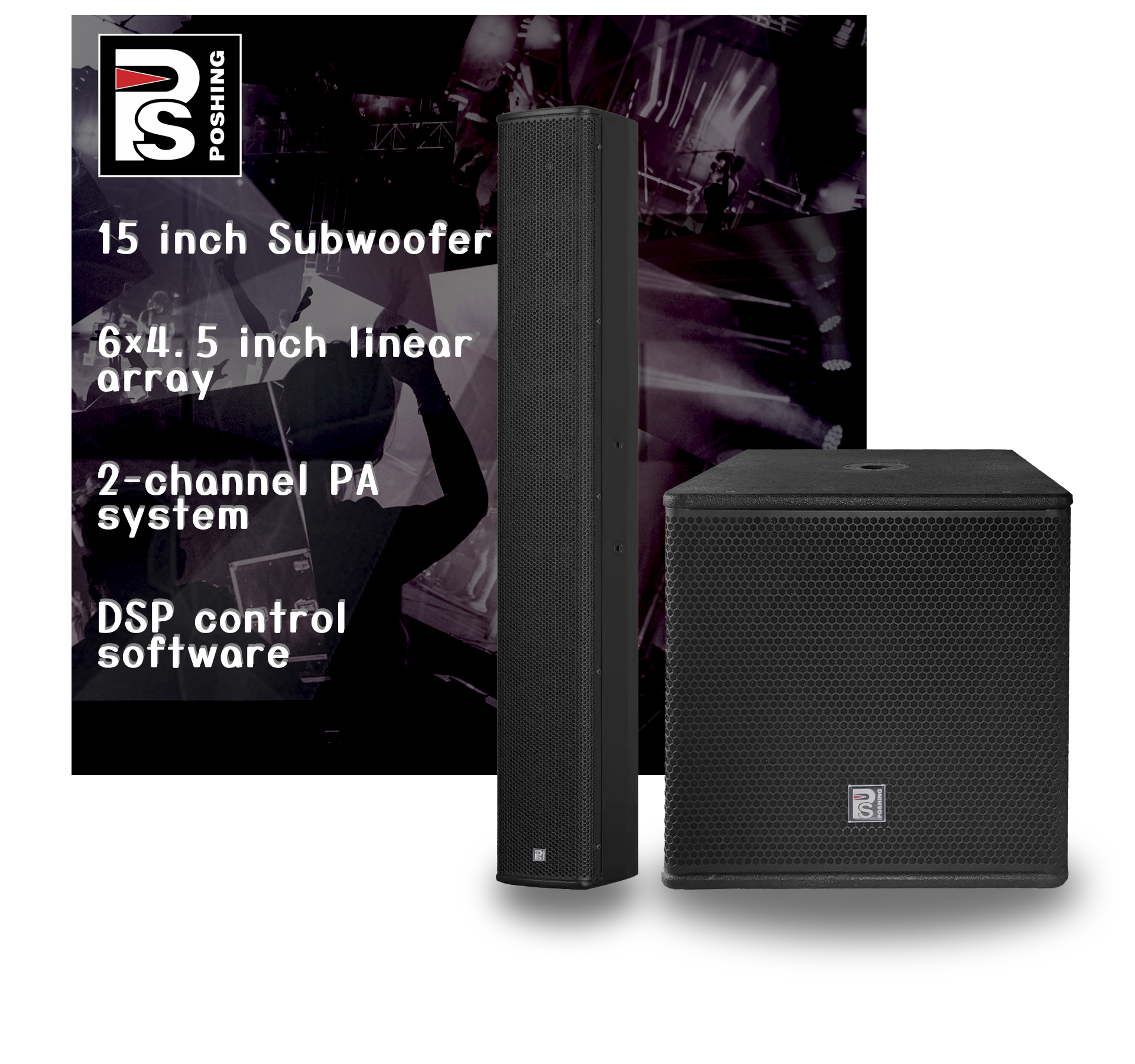

15 Inch Subwoofer and 4.5 Inch Line array DSP PA system
Quantity:

DSP PA system

H-408 PH-315

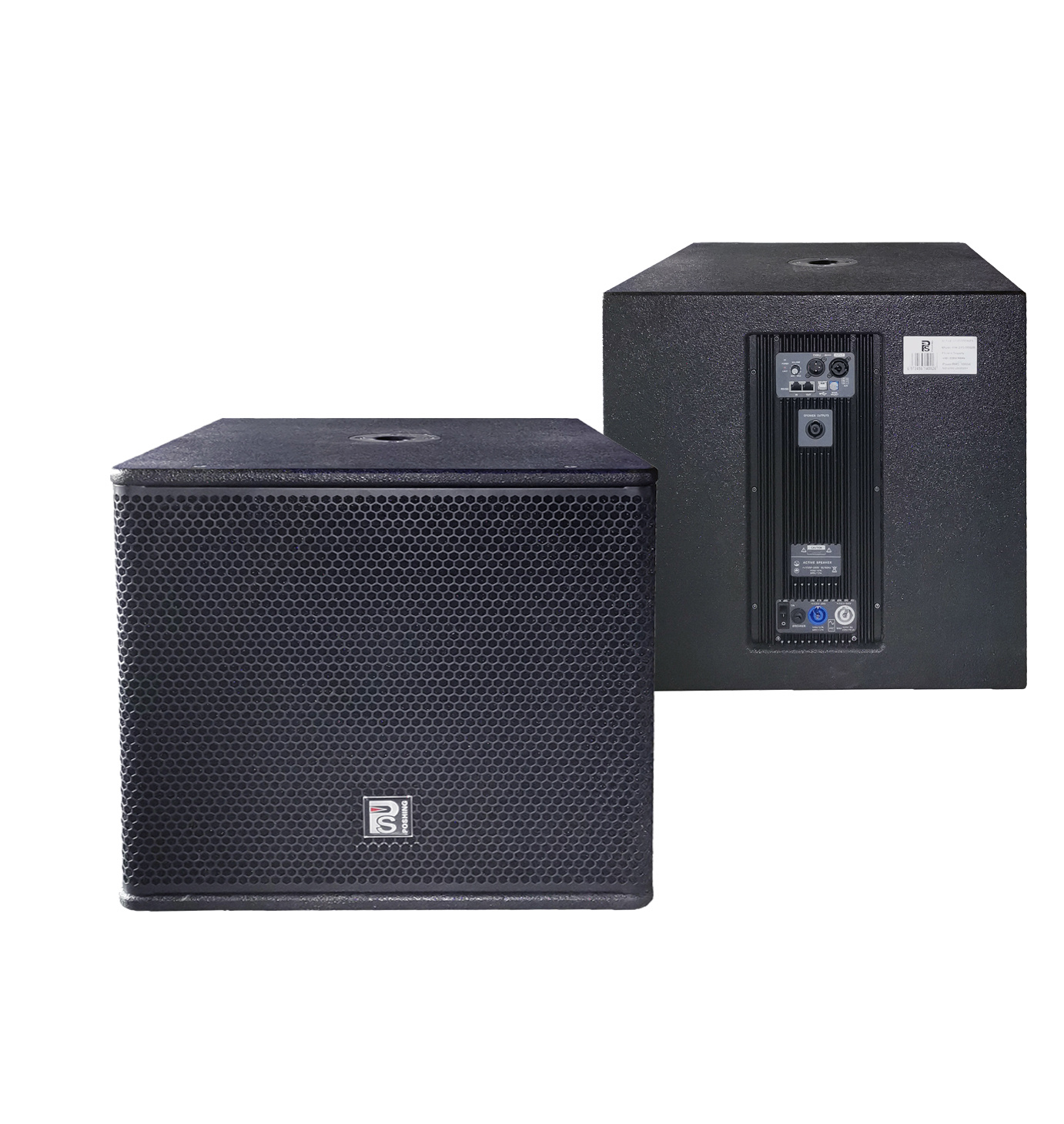

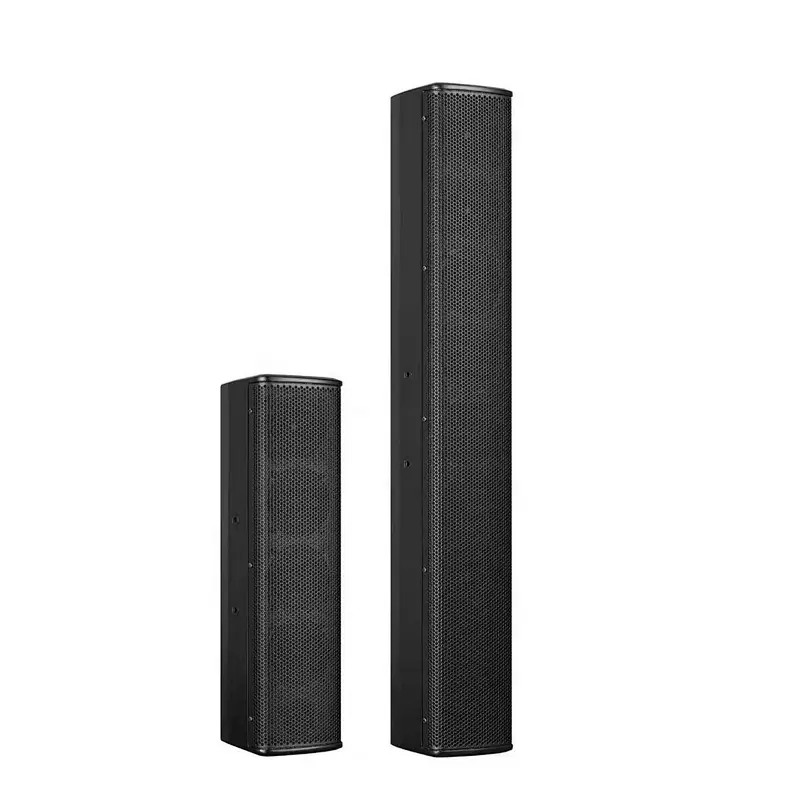

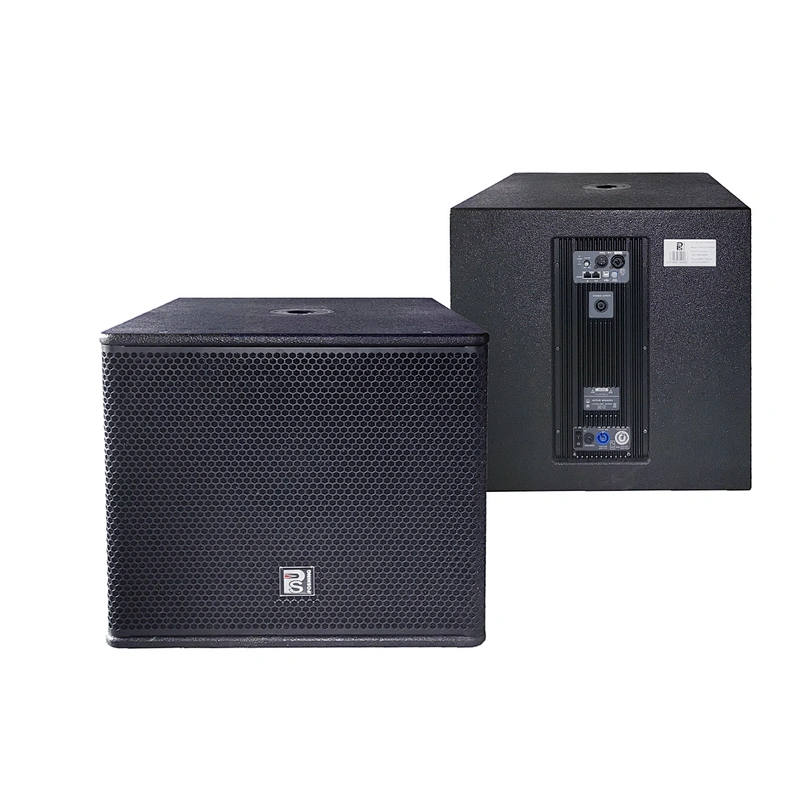

4.5"Line array 15"PA Subwoofer

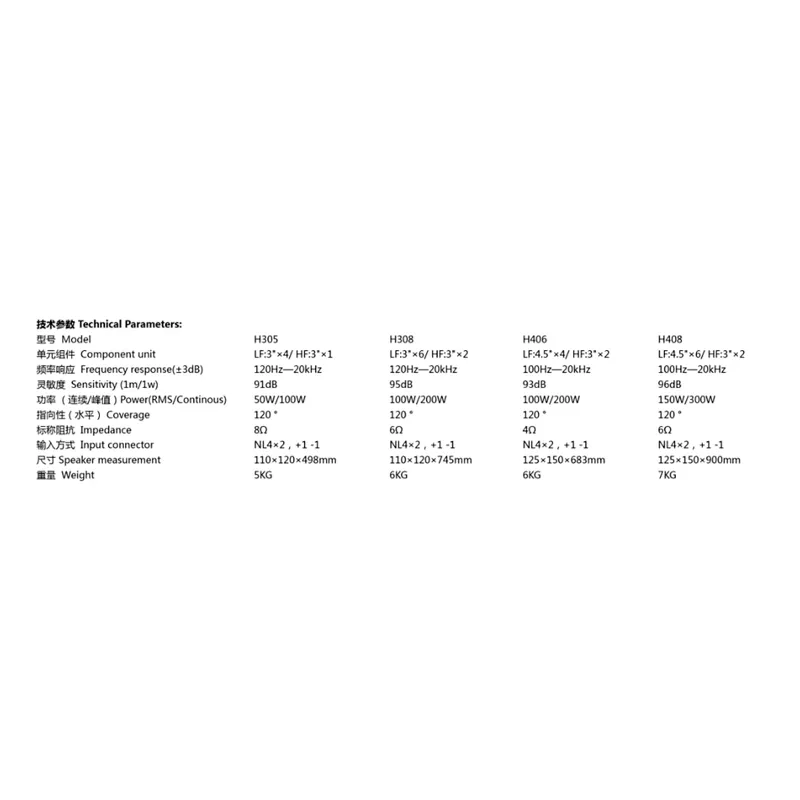

parameterparameter
UnitsLF:4.5"×6/ HF:3"×2UnitLF:1× 15"
Frequency
response(±3dB)		100Hz—20kHzFrequency range(±3dB)38Hz-250Hz
Sensitivity(1m/1W）96dBMax peak output 120dB
Power（Continuous/Peak）150W/300WRated Impedance:4Ω
Directivity（level）120 °Rated power450w*2
(0ne output channel)
Impedance6ΩTHD﹤0.5%(1KHz-9dB)
InputNL4×2，+1 -1signal processingDSP
Dimmension125×150×900mmamplifier TypeClass D
Weight7KGPower supply ～170-270VAC 50/60Hz
Voltage3.2A/240VAC
Dimension(W x H x D)500x490x550mm
Weight32kg

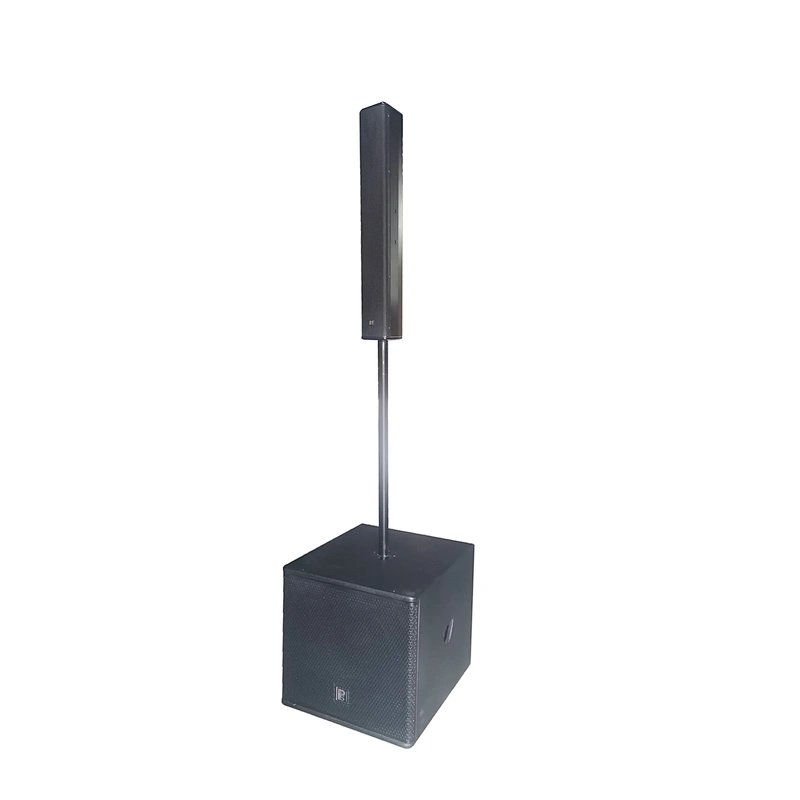

Compact DSP PA linear array speaker suitable for indoor or outdoor use
The overall weight is light, easy to use, simple to operate, and the compact linear array brings good directivity

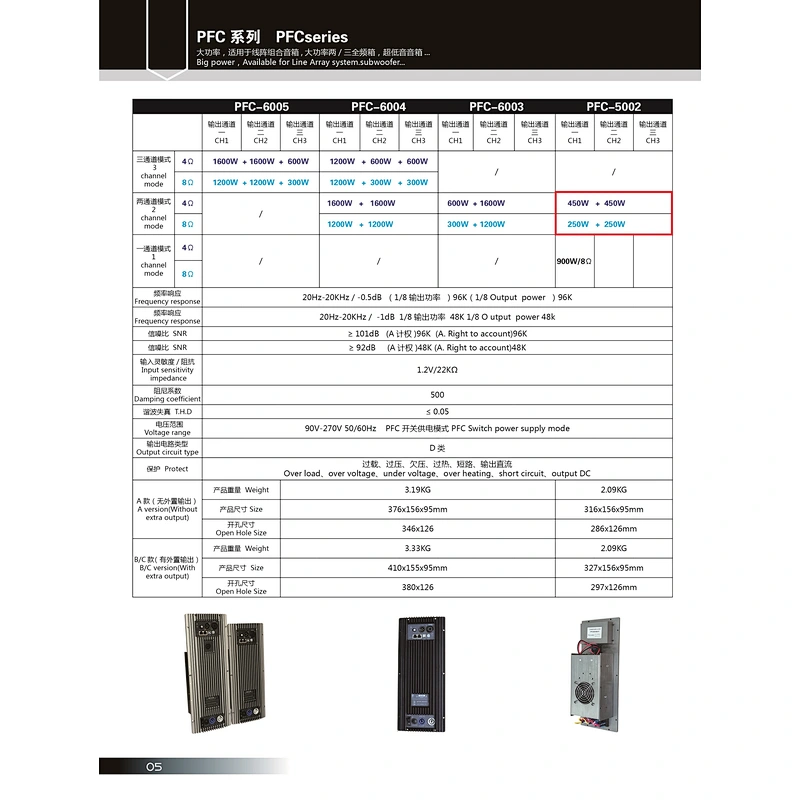

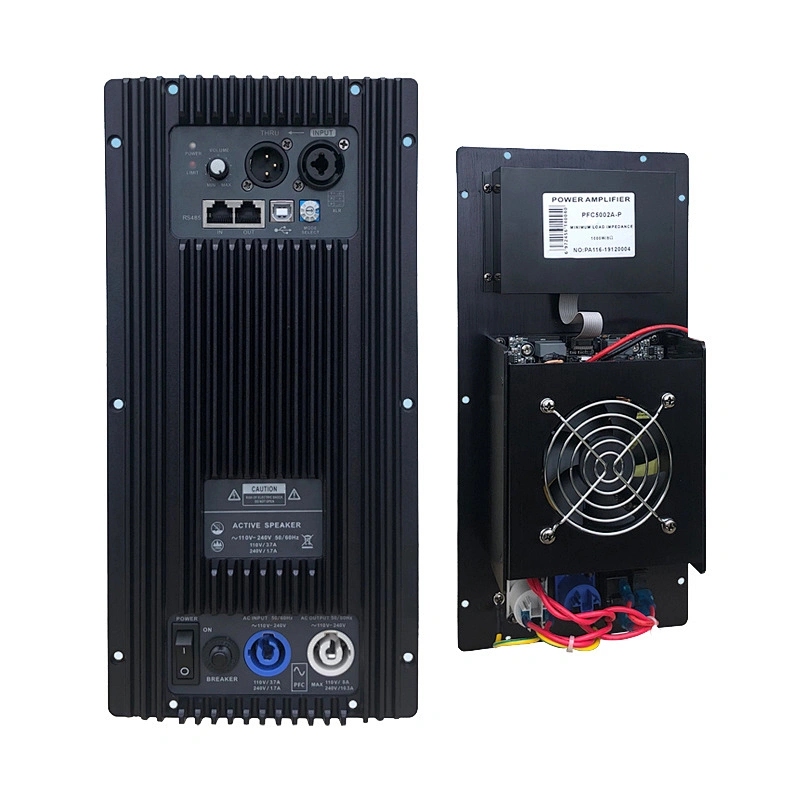

With source DSP power amplifier moduel, the speaker can be used in different occasions
